BlinderKitten

A free lighting software without restriction

What is that ?

BlinderKitten is a free lighting software designed to be used during live events or theater. Unlike other lighting softwares, there is no restrictions that you can lift by paying or buying a dongle. Everything is available, unrestricted and free.

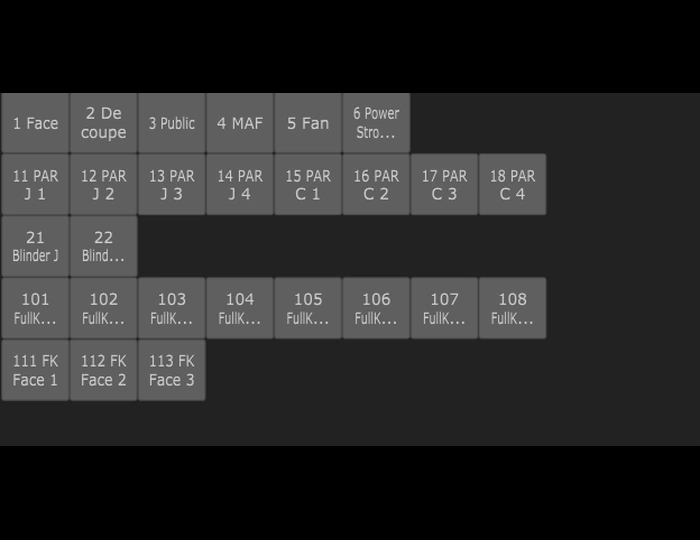

The software is "fixture-oriented", it means that you don't have to learn and control each DMX channel by hand like in a traditionnal lighting desk, here, you just have to tell BlinderKitten what kind of device you're using (called a fixture type), add one fixture per device patched on your stage, fill the address in the fixture and BlinderKitten has now full control of your device.

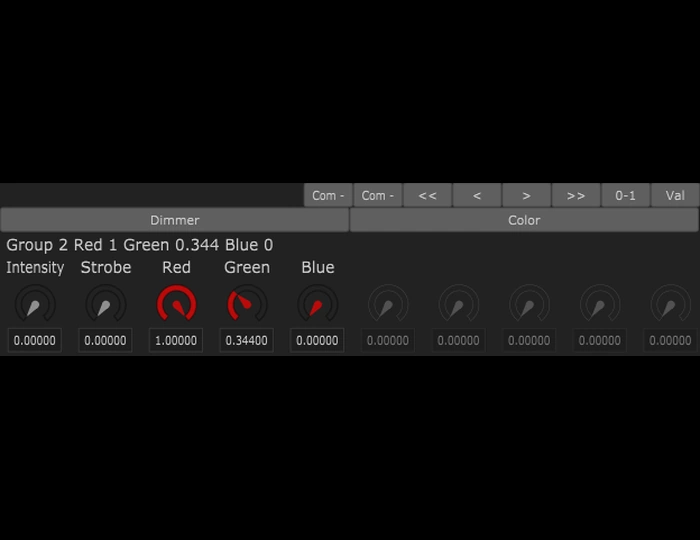

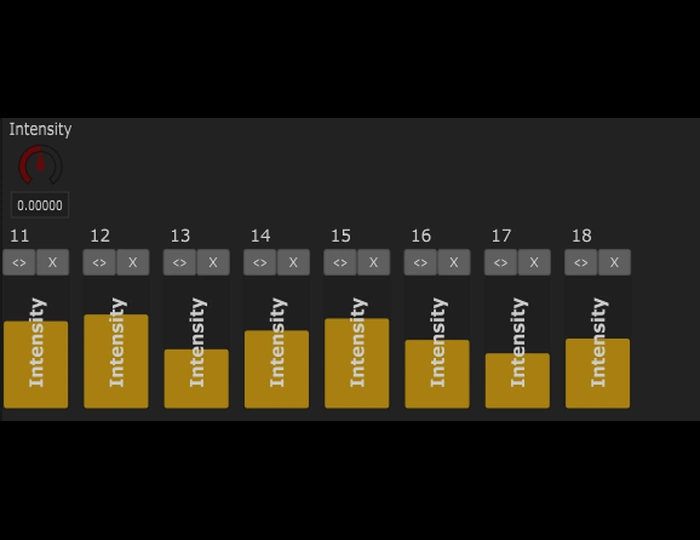

You can then have a control of your channels by moving the channels encoders corresponding to your needs.

Every composition you make with your fixtures can be recorded in a cuelist, containing one cue by composition. You can define timing to go from one to anothers and act like a conductor, and you can also have multiple cuelists working together, respecting LTP and HTP priorities.
Cuelists are a center component of BlinderKitten, they have lot of options and usages.

There is currently three functions to add automatic behaviors to your fixtures : effects, carousels and mappers.
Effects use a curve to add values to you fixtures, Carousels use key values, both of them spread your fixtures and loop to add movement to your values.
Mappers apply a value depending on another value for each selected fixture. They allow you for example to change your fixture's color depending on its intensity.

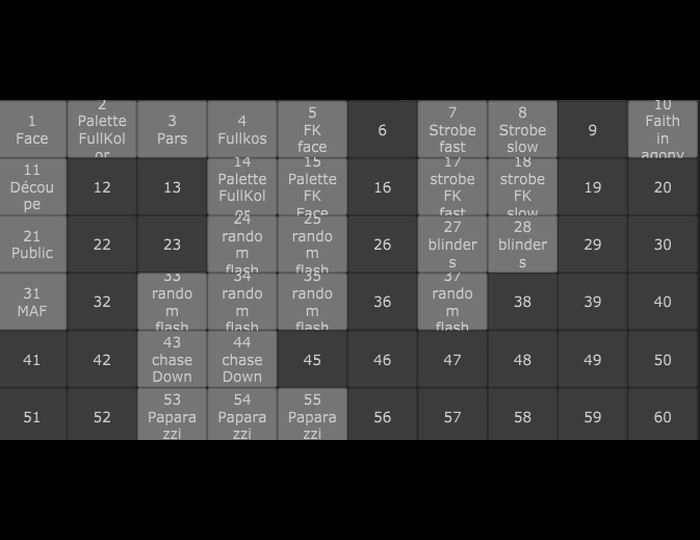

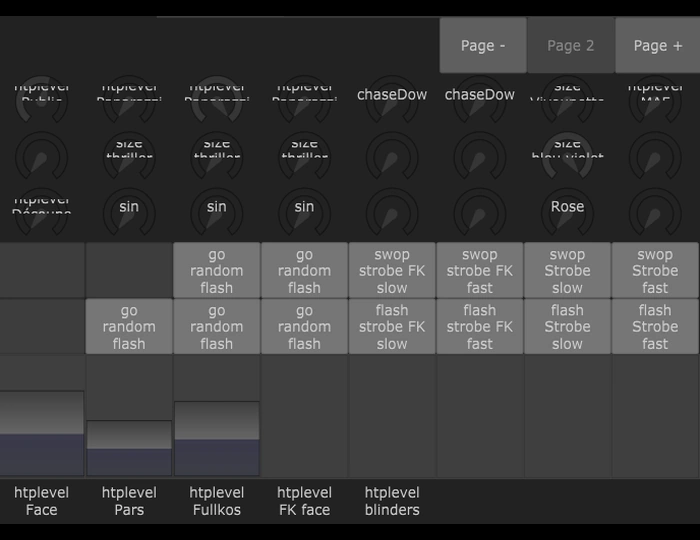

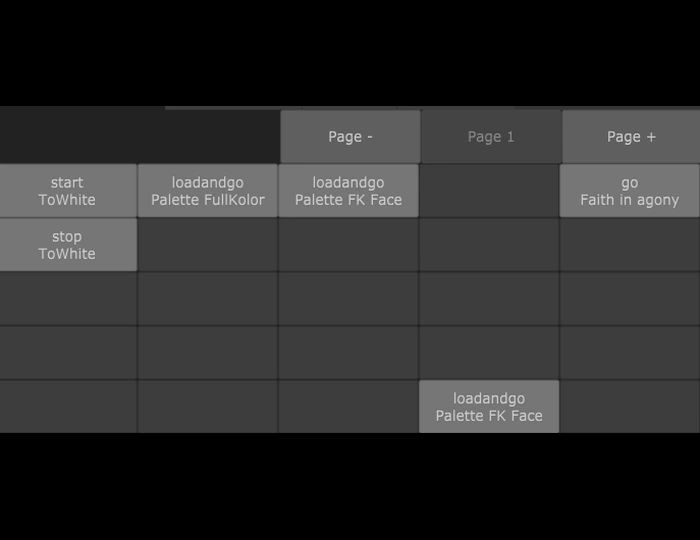

To render your creations, you have a panel with virtual faders and one with virtual buttons. BlinderKitten doesn't have a physical console, so there is no limitation on the number of buttons or faders. You can also set the number of buttons above and below each fader.

BlinderKitten can output as many universes as you need (or want) and can be remote controlled by OSC or MIIDI. Sinceit can output Art-Net, it is fully compatible with capture.

Functionalities

Programation

Fixture based programation Concurent cuelists.
Relative or absolute curved based effects.
Absolute waypoints effects (carousel).
Cuelists with auto follow or go triggered.
Groups and presets modifications are passed on cuelists.
Cues can trigger effects, carousels or other cuelists.
Unlimited universes.

Connectivity

Chataigne module.
ASCII import.
GDTF fixtures import.
MVR project import.
Unlimited OpenDMX, ENTTEC, Artnet outputs.
Unlimited MIDI inputs.
OSC controllable.

Gallery

Downloads & links

Windows
Windows

Current Win 8/10/11 version : 1.0.1b70
Dev version
Current Win 7 version : 1.0.1b70
Win7 Dev version

MacOS
MacOS

Current Intel version : 1.0.1b70
Intel Dev version
Current Silicon version : 1.0.1b70
Silicon Dev version

Linux
Linux

Current version : 1.0.1b70
Dev version

RaspPI
RaspPI

Current aarch64 version : 1.0.1b70
aarch64 Dev version
Current armhf version : 1.0.1b70
armhf Dev version

Fixture library

You can search and download your fixture on the fixtures page or download the latest complete fixture library.

Shared data

Example content in the shared data zip file.

Community links

All informations about developpement are on the github page of the project. The software is continuously in developpement.

An online documentation is avalable on gitbook. There is a step by step guide to understand the primary concepts of the software and one dedicated page for every object of the software.

A discord server is available to discuss, ask help or request changes or new features in the soft.
Some video tutorials and demo are on the youtube page.

Begin to learn a software from scratch can be annoying, so you can use Capture Student Edition with the demo capture project and the demo show file presents in the shared data zip file. Installation and setup are explained in this page of documentation.

Do you need inspiration ? A lighting cookbook is on construction on this site. Feel free to use it and to add your contributions to it.
